The build
-
Year: 1980
Model: 930 3.3 (EU Spec)
Bought OEM March 2024
Work completed by Zeigen Porsche
-

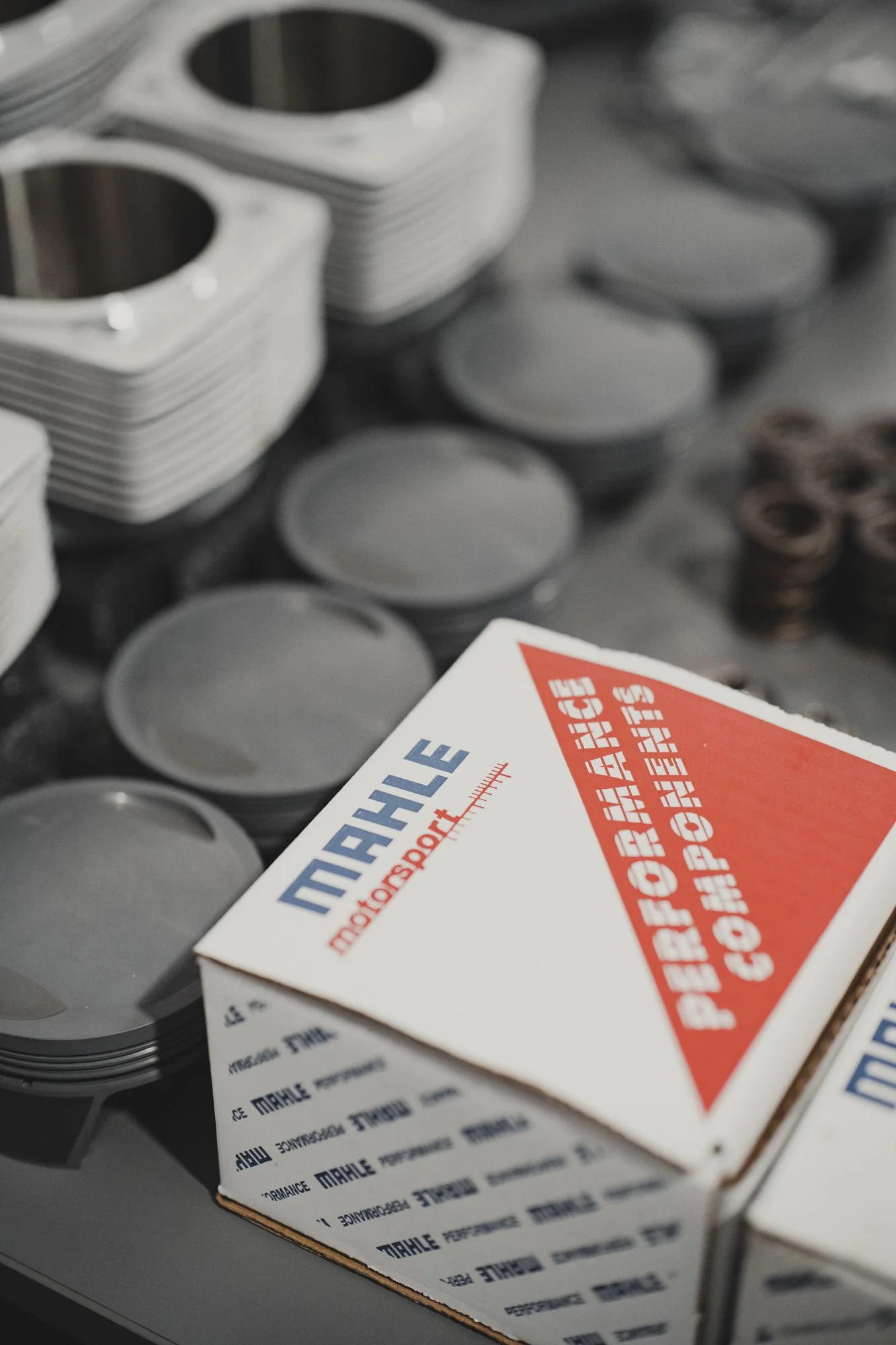

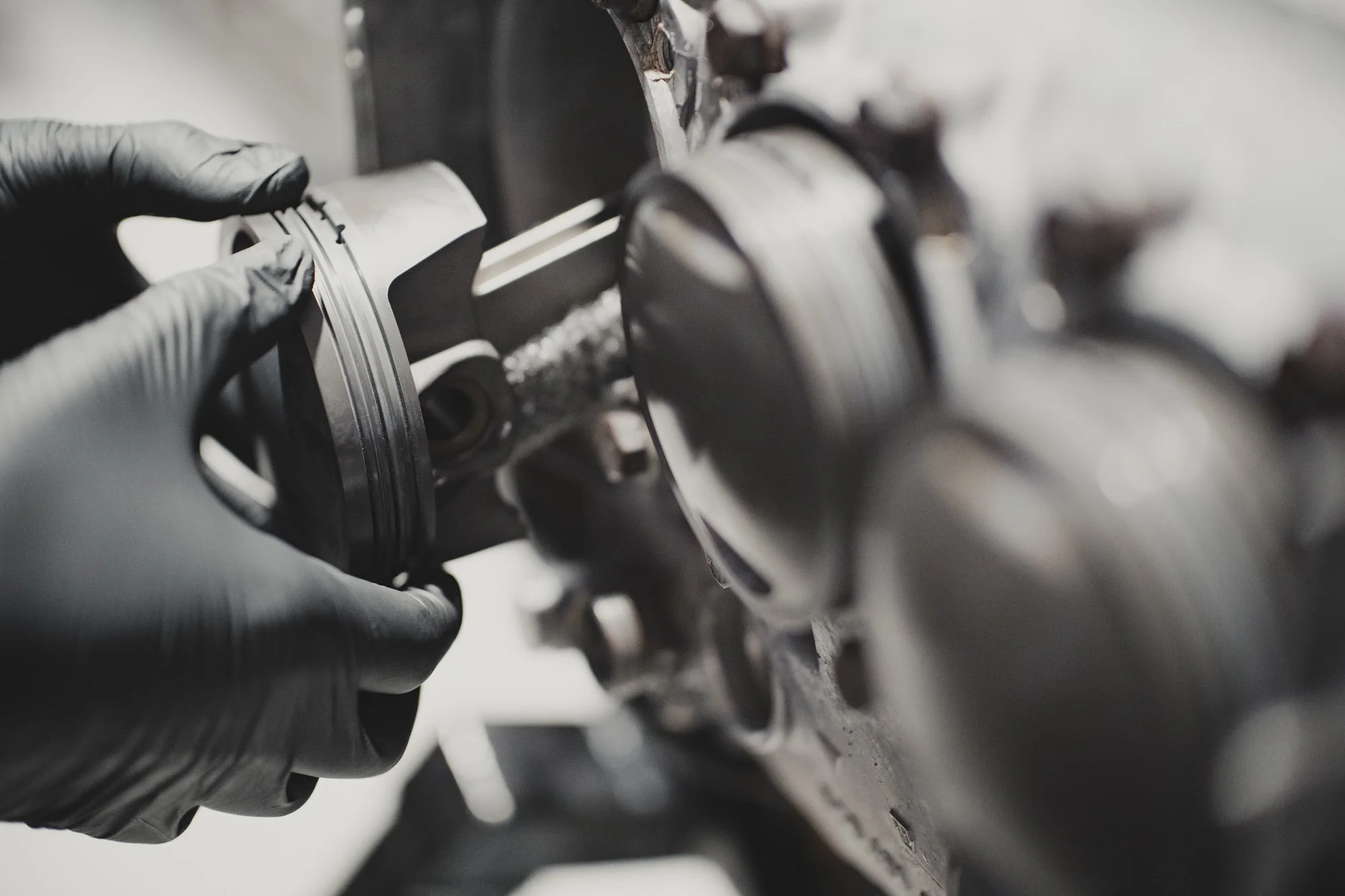

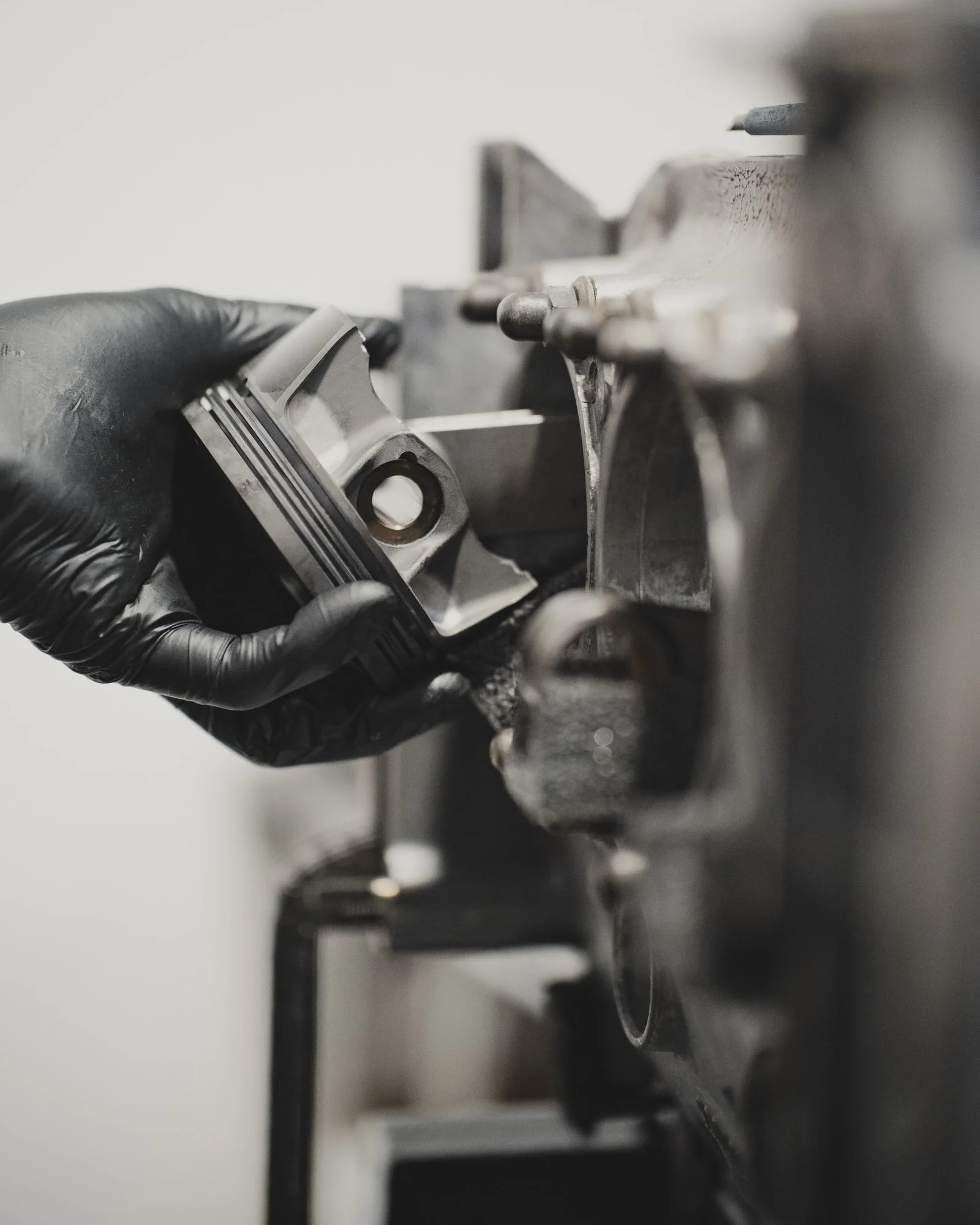

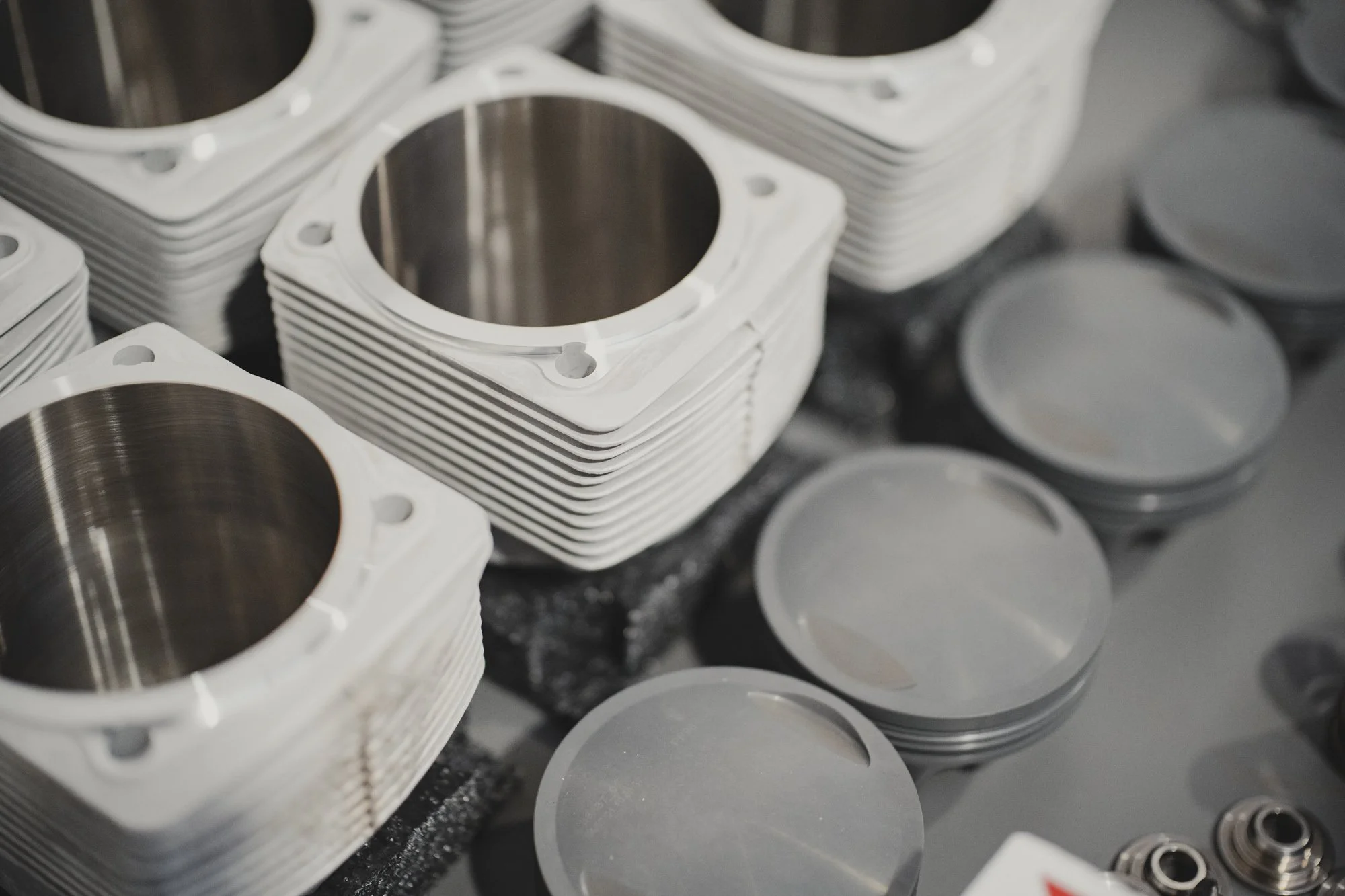

Mahle Motorsport 98mm Pistons & Cylinders 3.4L

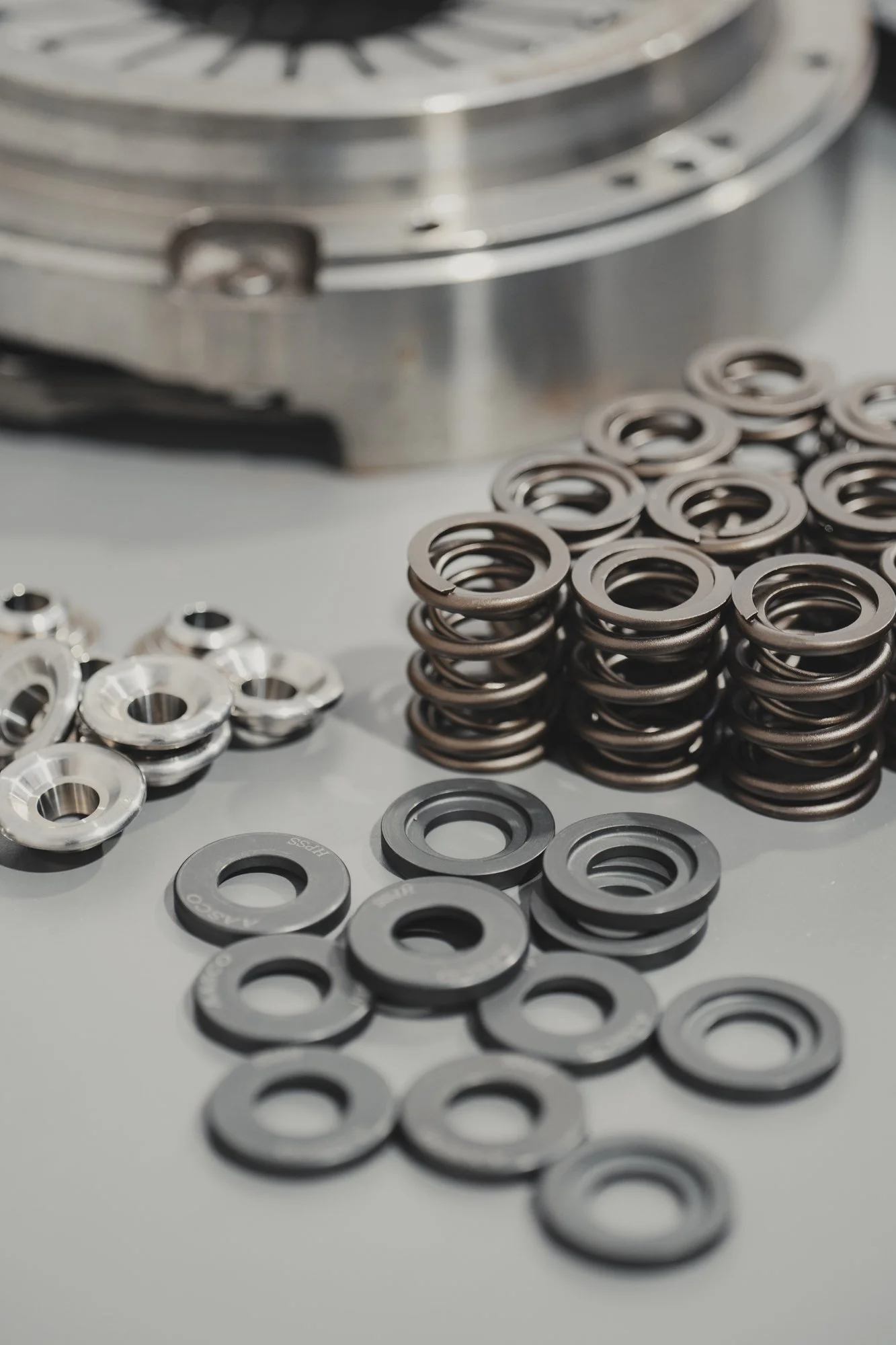

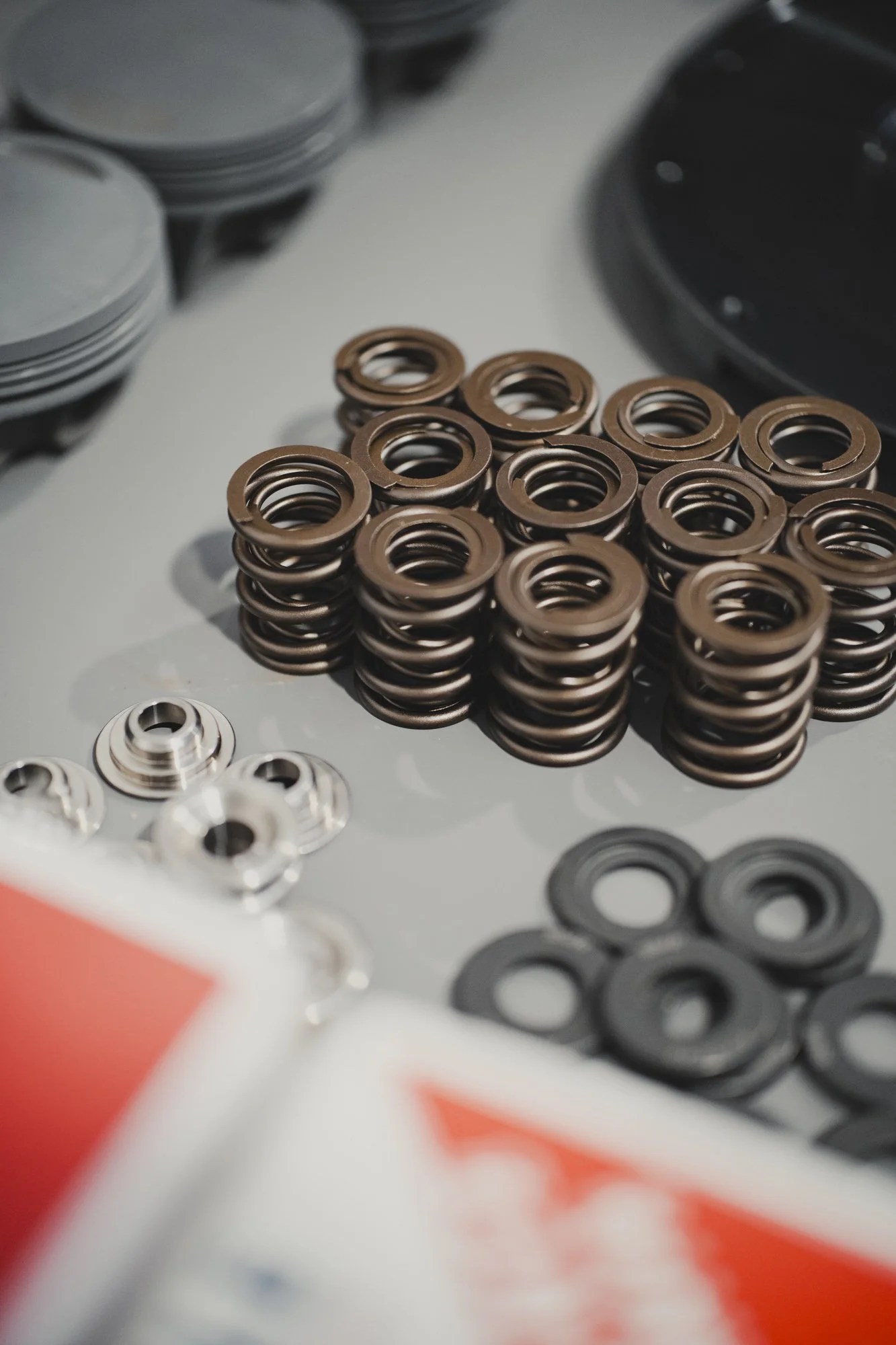

Aasco Motorosport valve spring, seat and retainer kit 9m

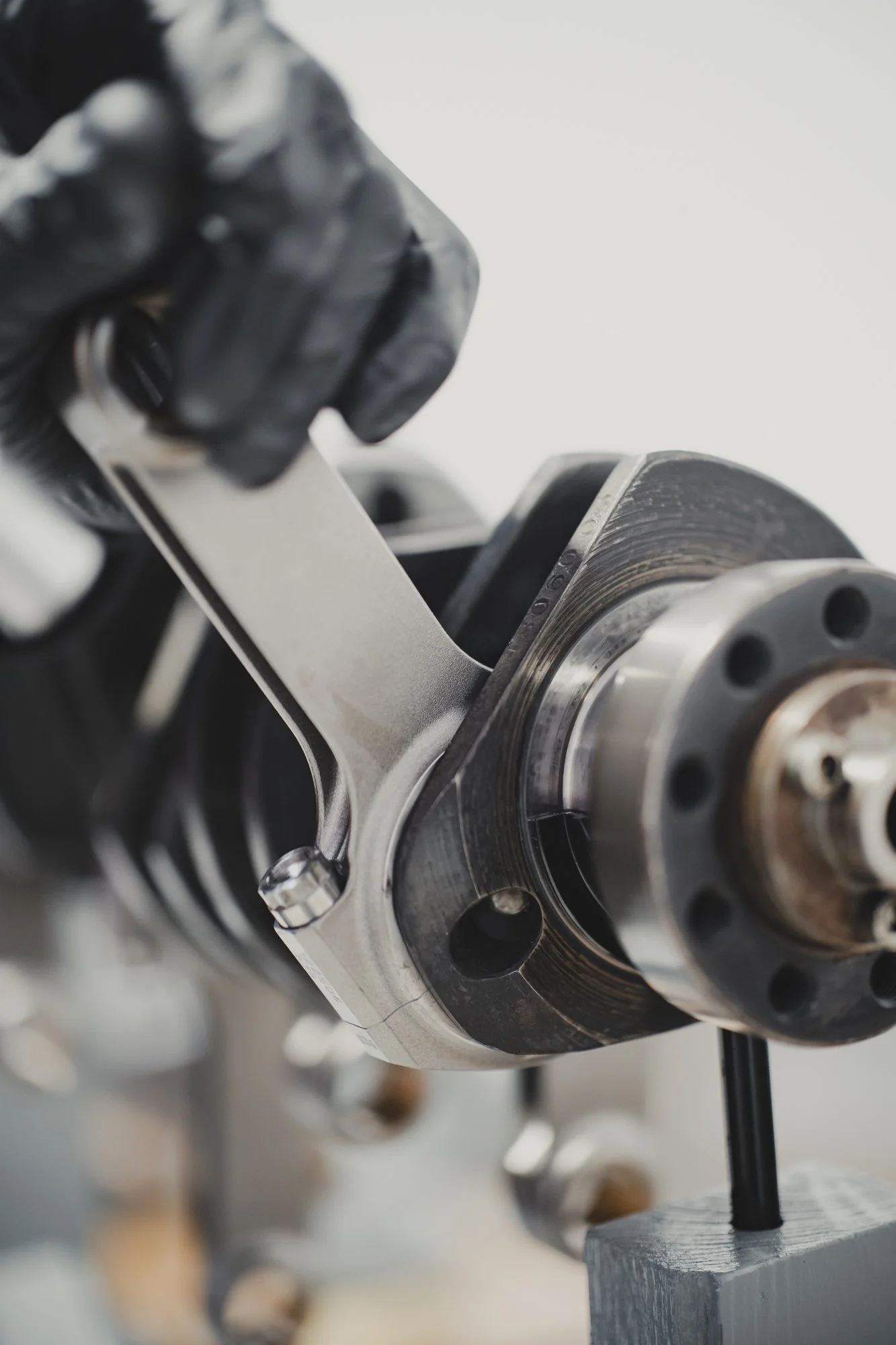

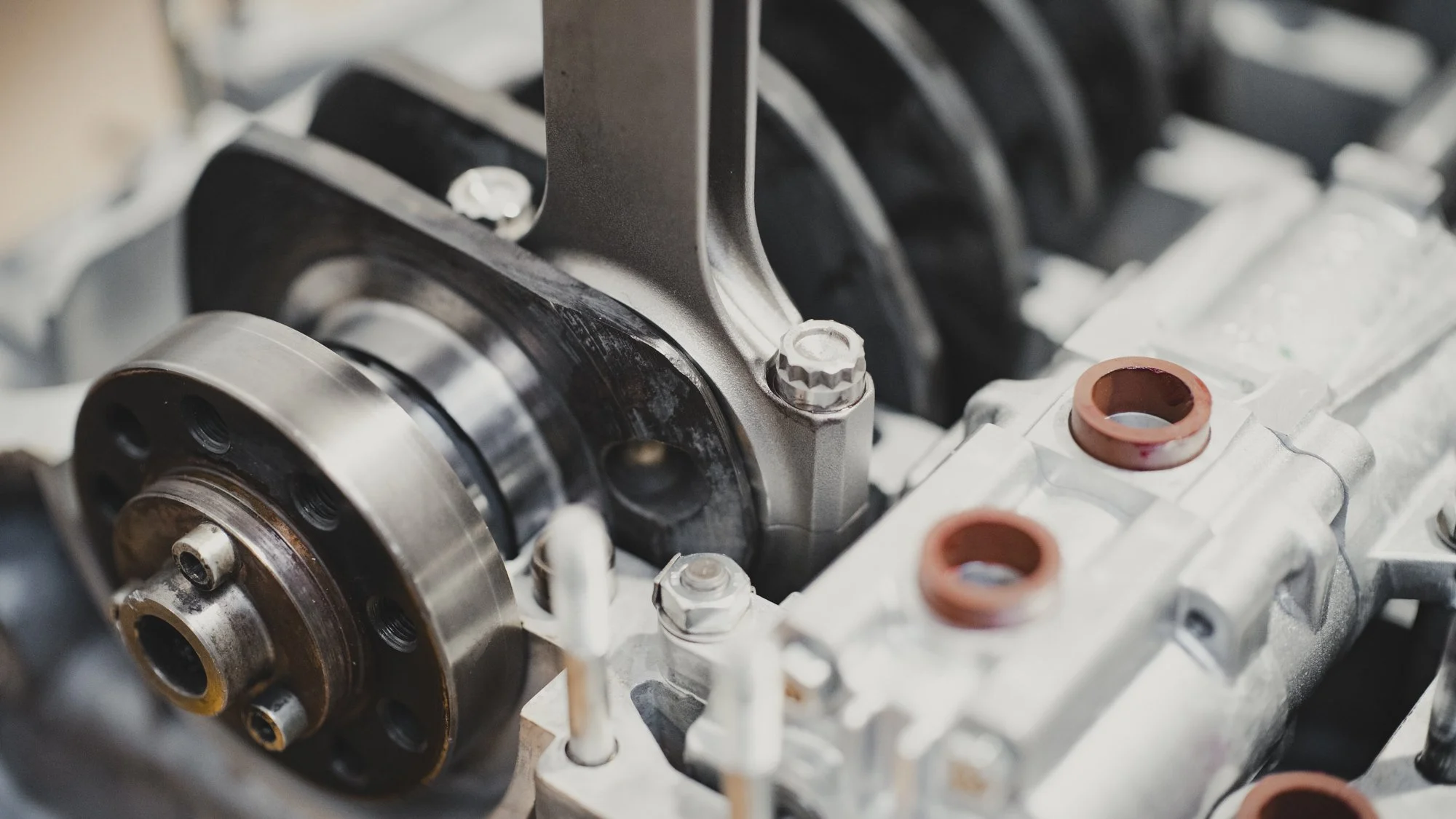

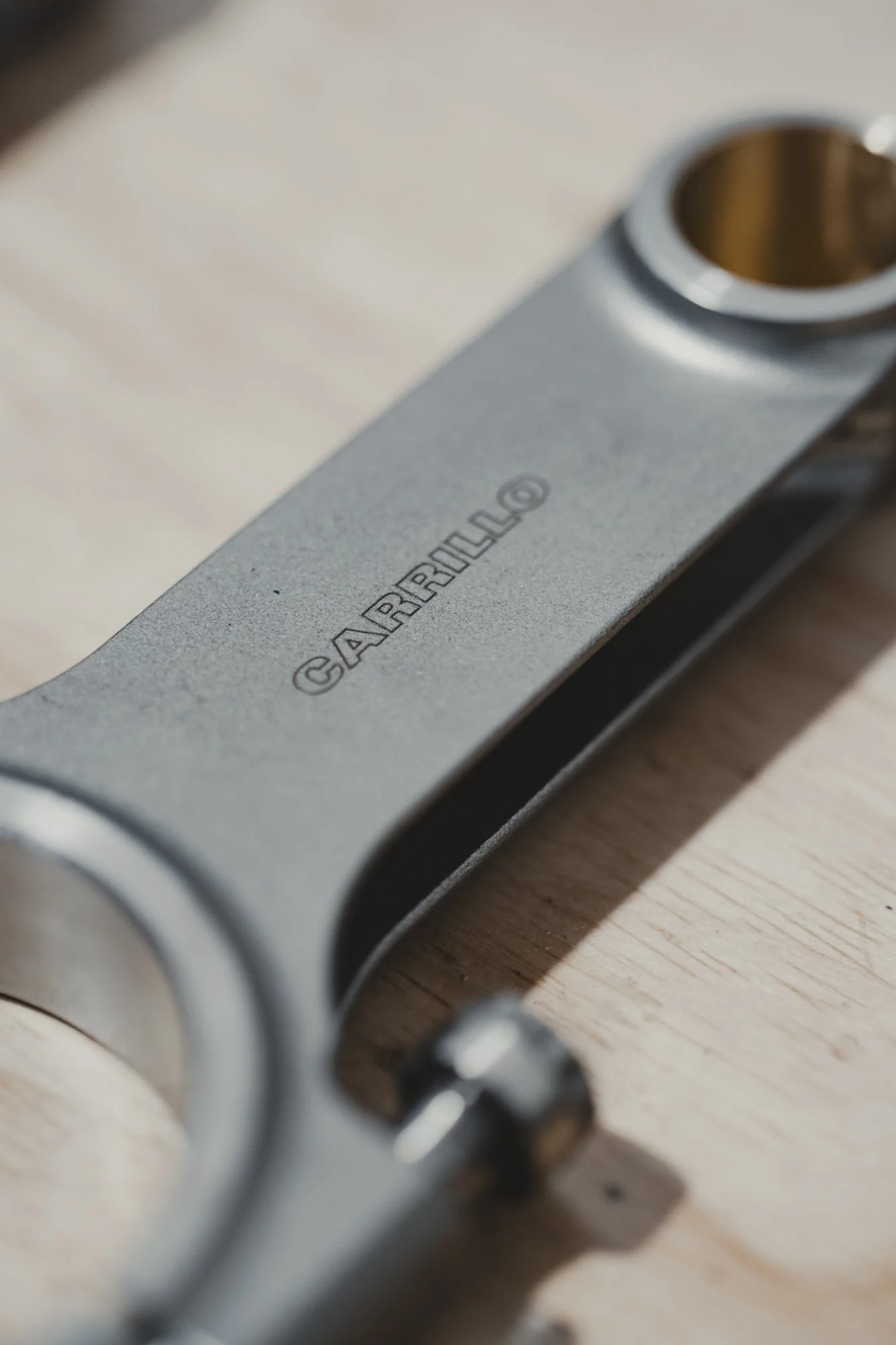

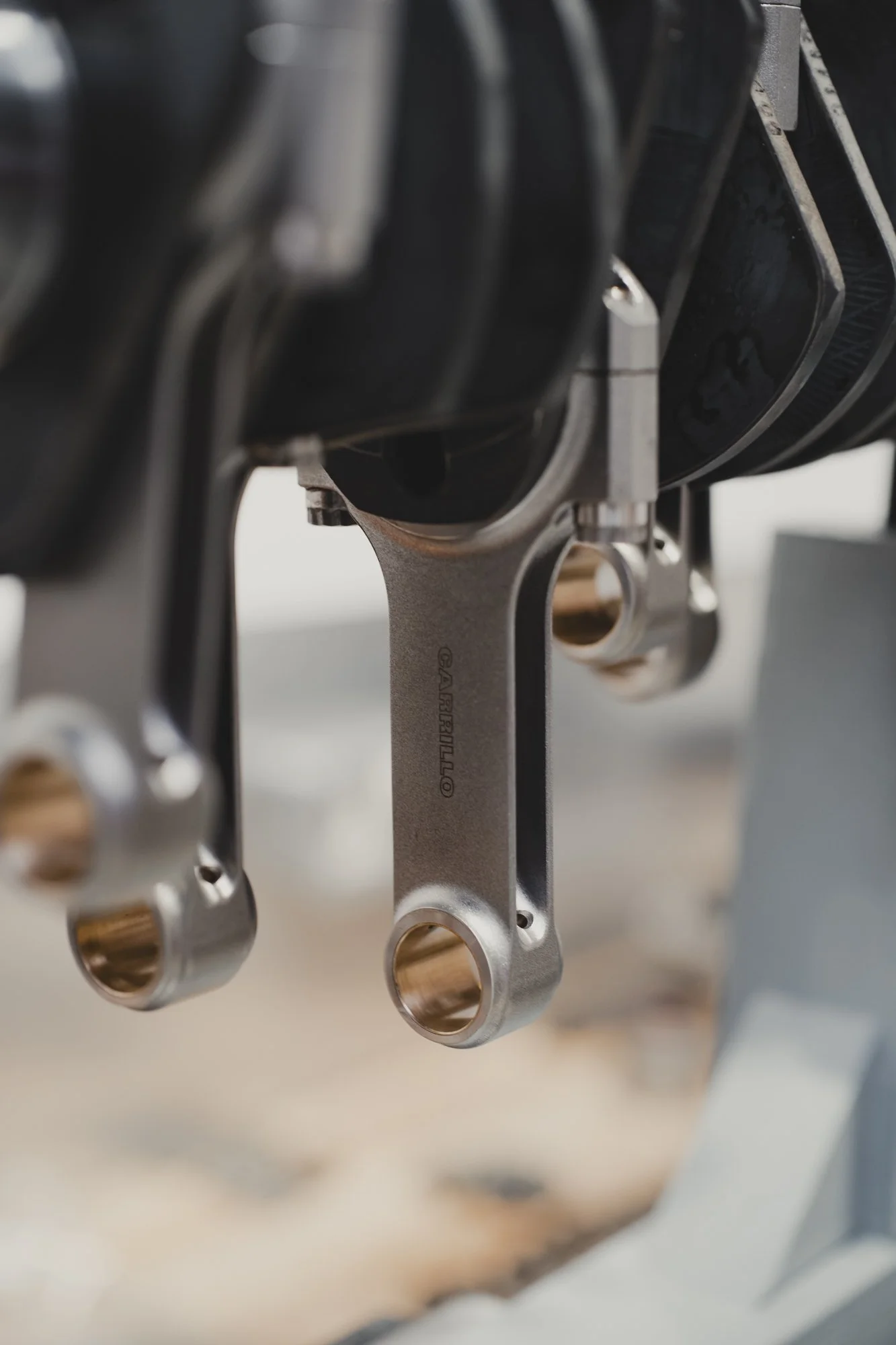

Carrillo TITAN 23mm rods - CARR-S7 (MP35N) BOLTAET
K27/ K29 Hybrid Turbo from AET
Fabspeed Performance Intercooler
Clevite 77 Tri-Metal Coated Performance Rod Bearing Set
Supertec Head StudsViton Performance gasket set

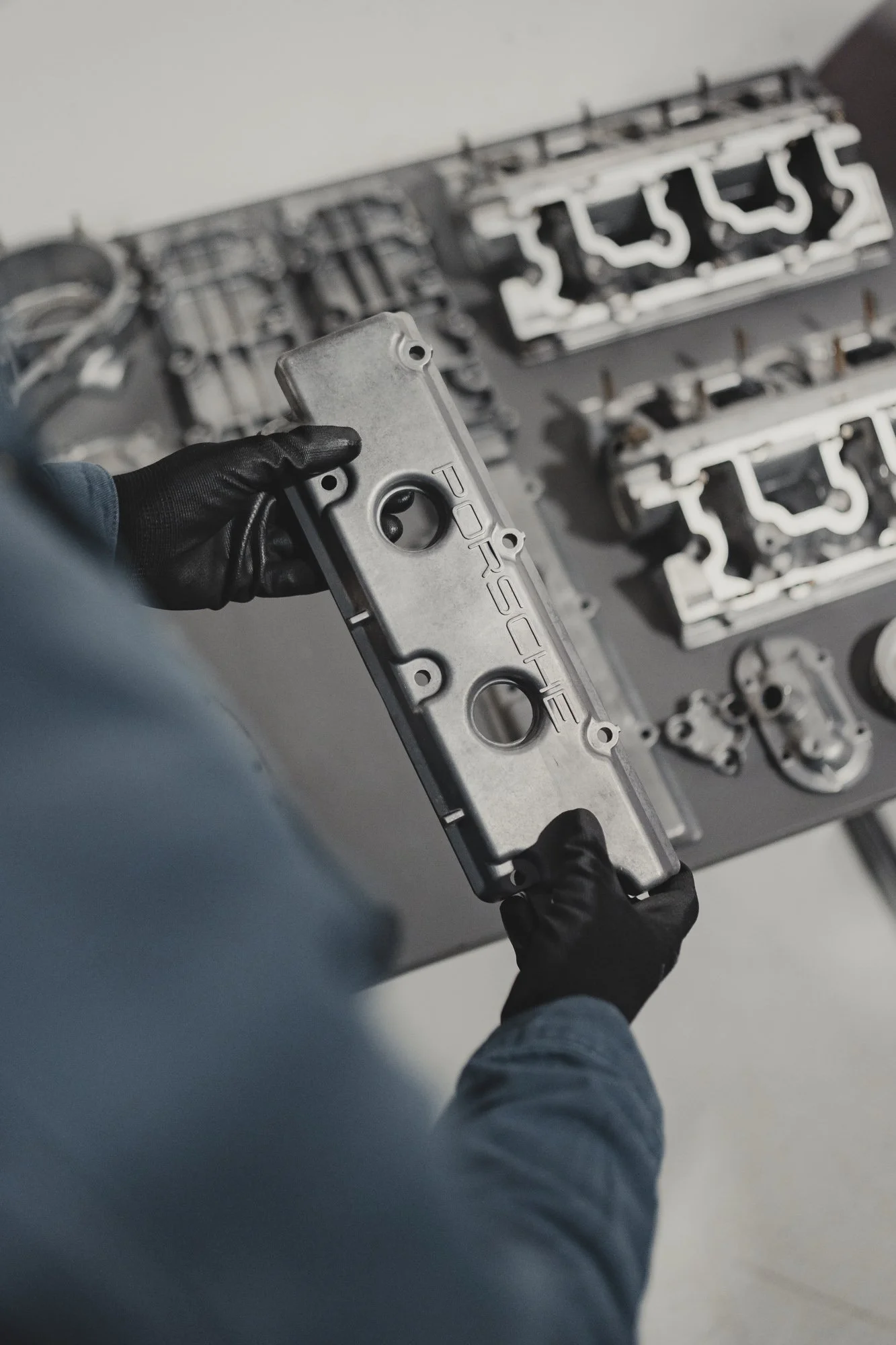

Bored out cylinder heads & intake manifold to 38mm
Moroso 85465 Vacuum Pump Breather Tan
Newman Cams with custom grind
Classic Retrofit CDI+
Supertec Head Studs
K&N Air Filter RU-5163 & Breathers
Turbokraft Billet 38mm CIS Injector blocks
TT exhausts custom GT3 style dual exhaust
Fabspeed Porsche 911 Turbo 930 Wastegate Dump Pipe
Fabspeed Porsche 911 Turbo 930 Headers with Heat exchangers
TiAL Sport F46 External Wastegate 1.0 Bar
Wavetrac Limited Slip Differential

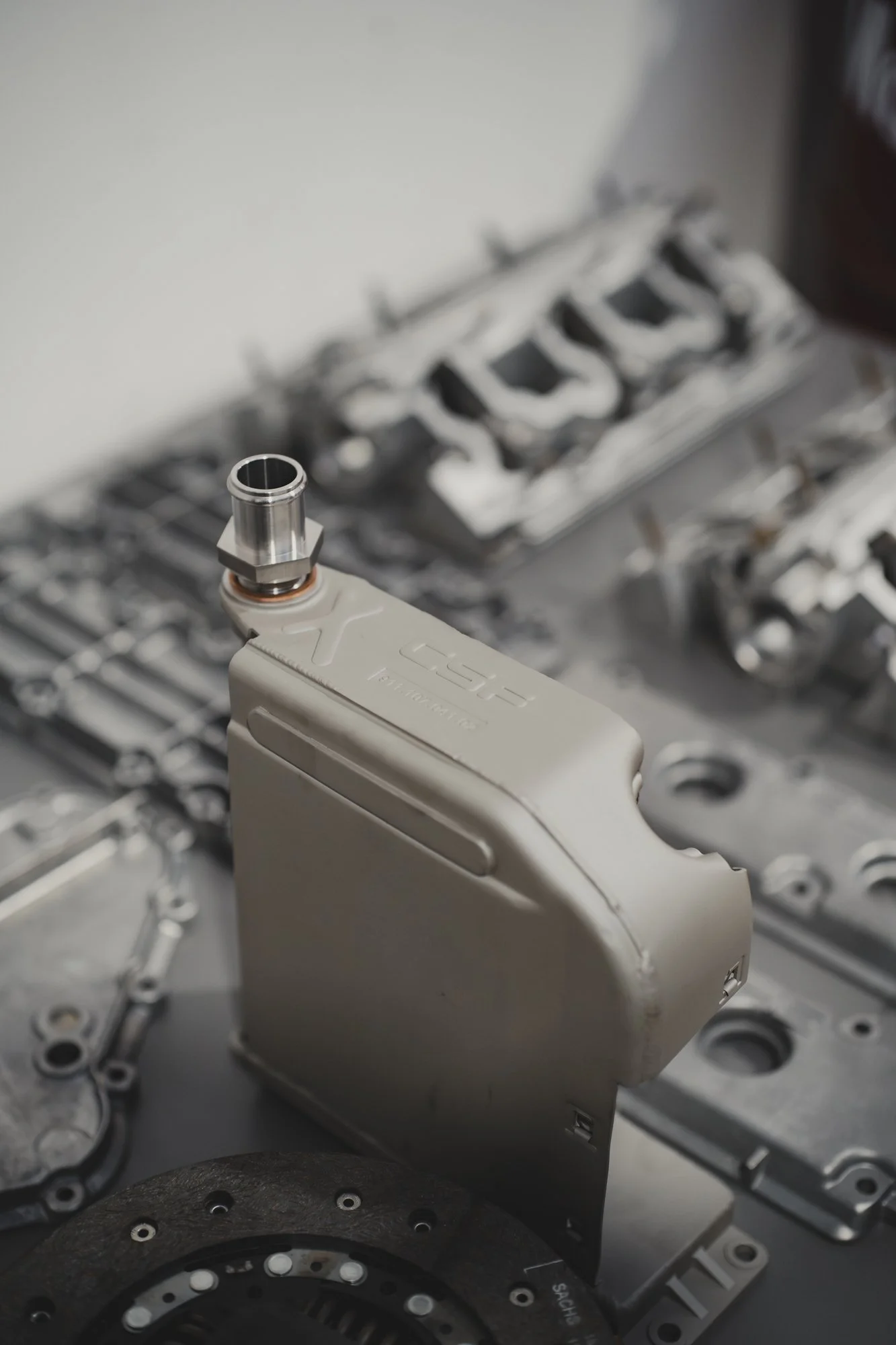

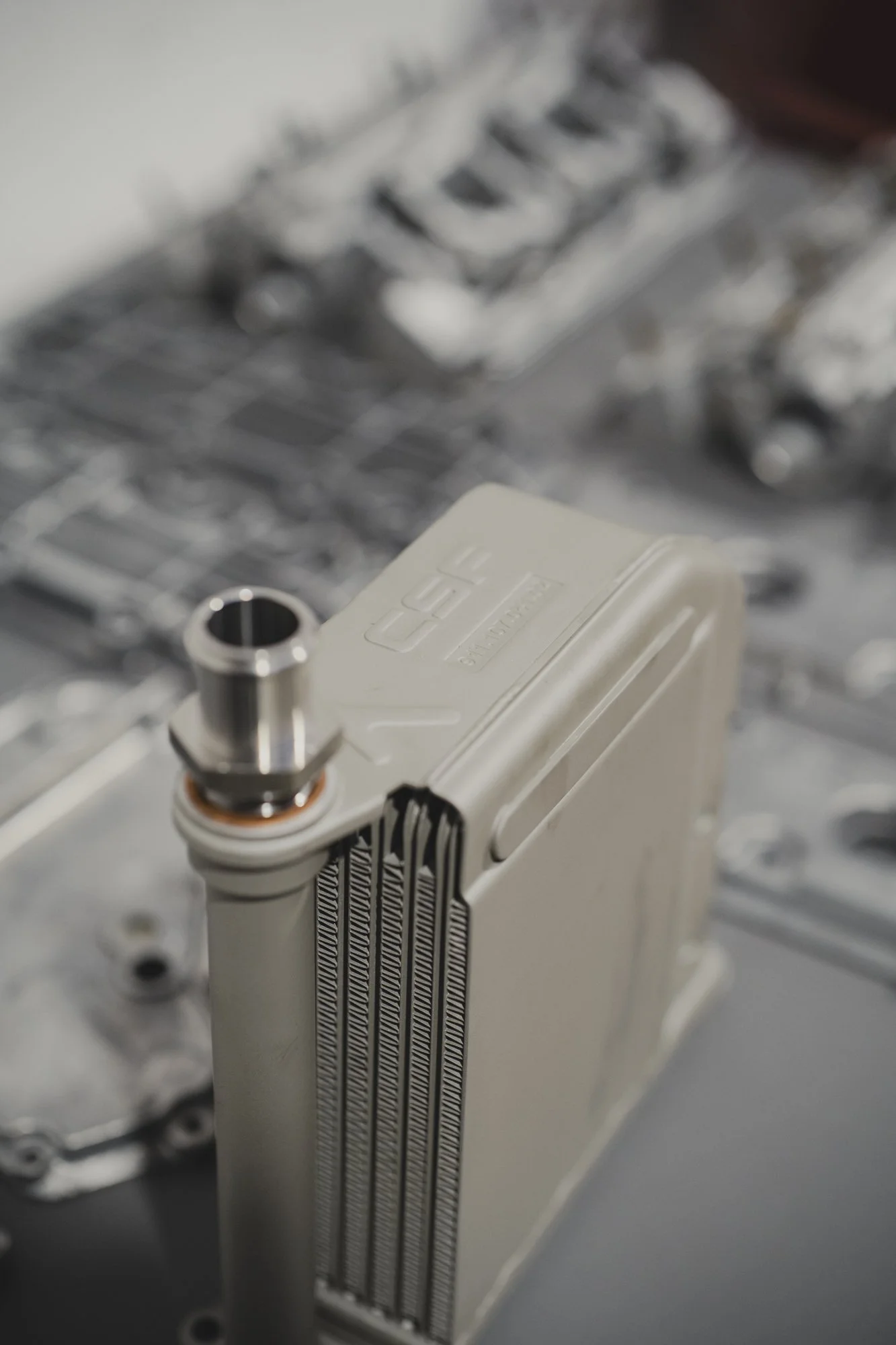

CSF Porsche 911 / 930 Turbo OEM+ High-Performance Engine Oil Cooler
CSF Radiator oil cooler High-Performance Core
Rennline Tunable Semi-Solid Engine Mounts
Rennline RSR Style Stainless Steel Engine Carrier

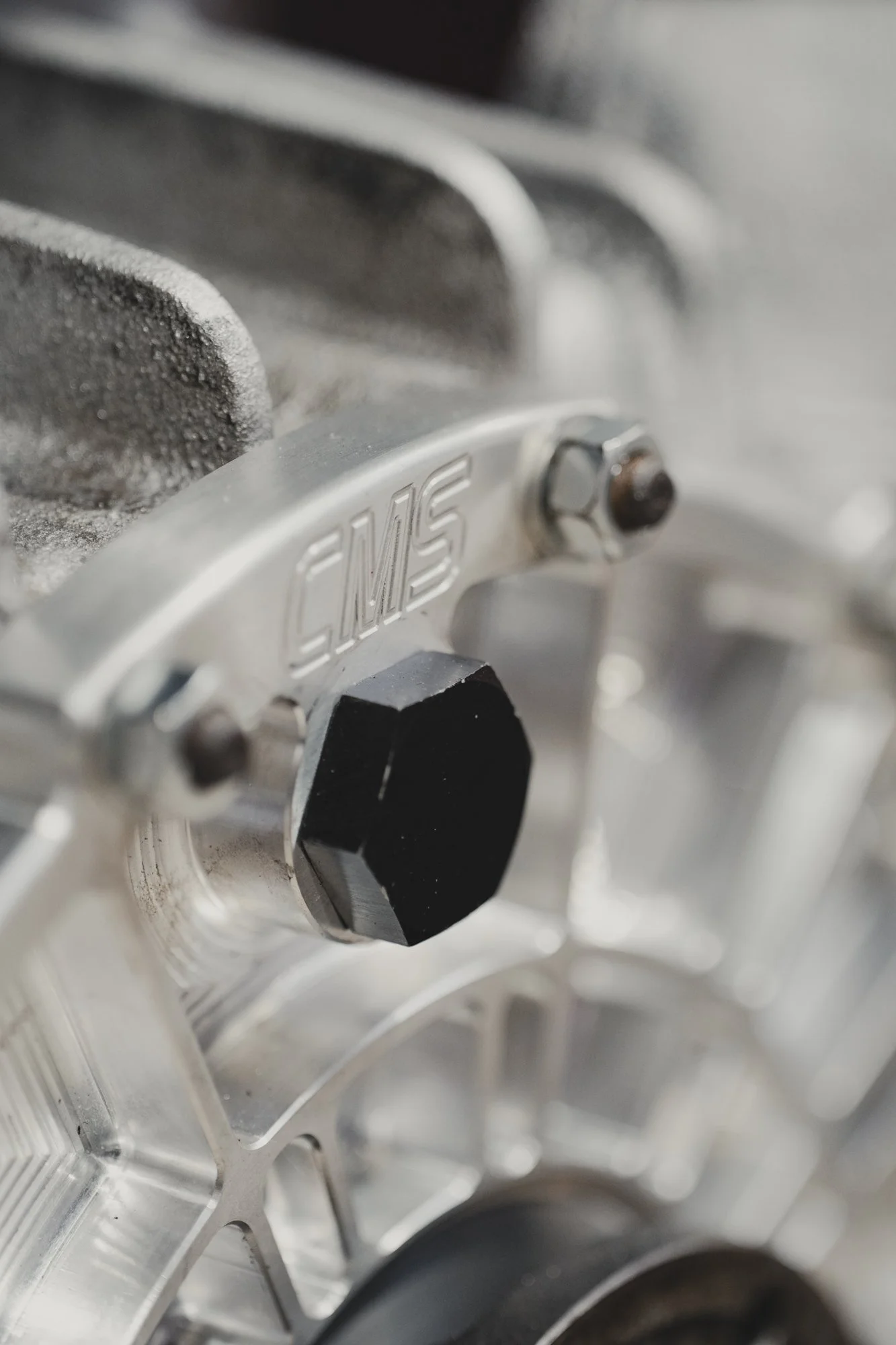

California Motorsports Billet Gearbox side plate
California Motorsports XT-032 Gearbox Bearing Retainer Plate

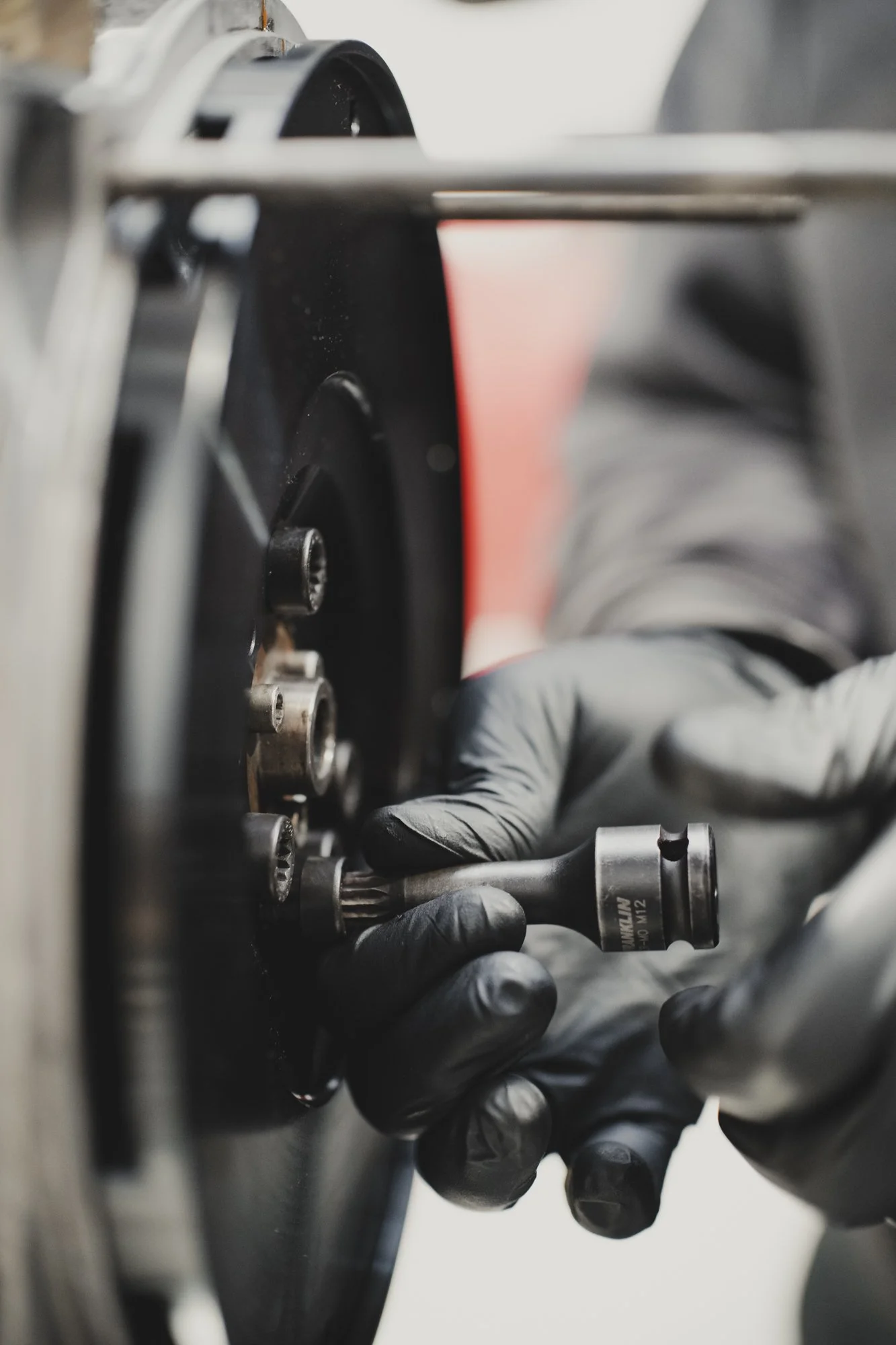

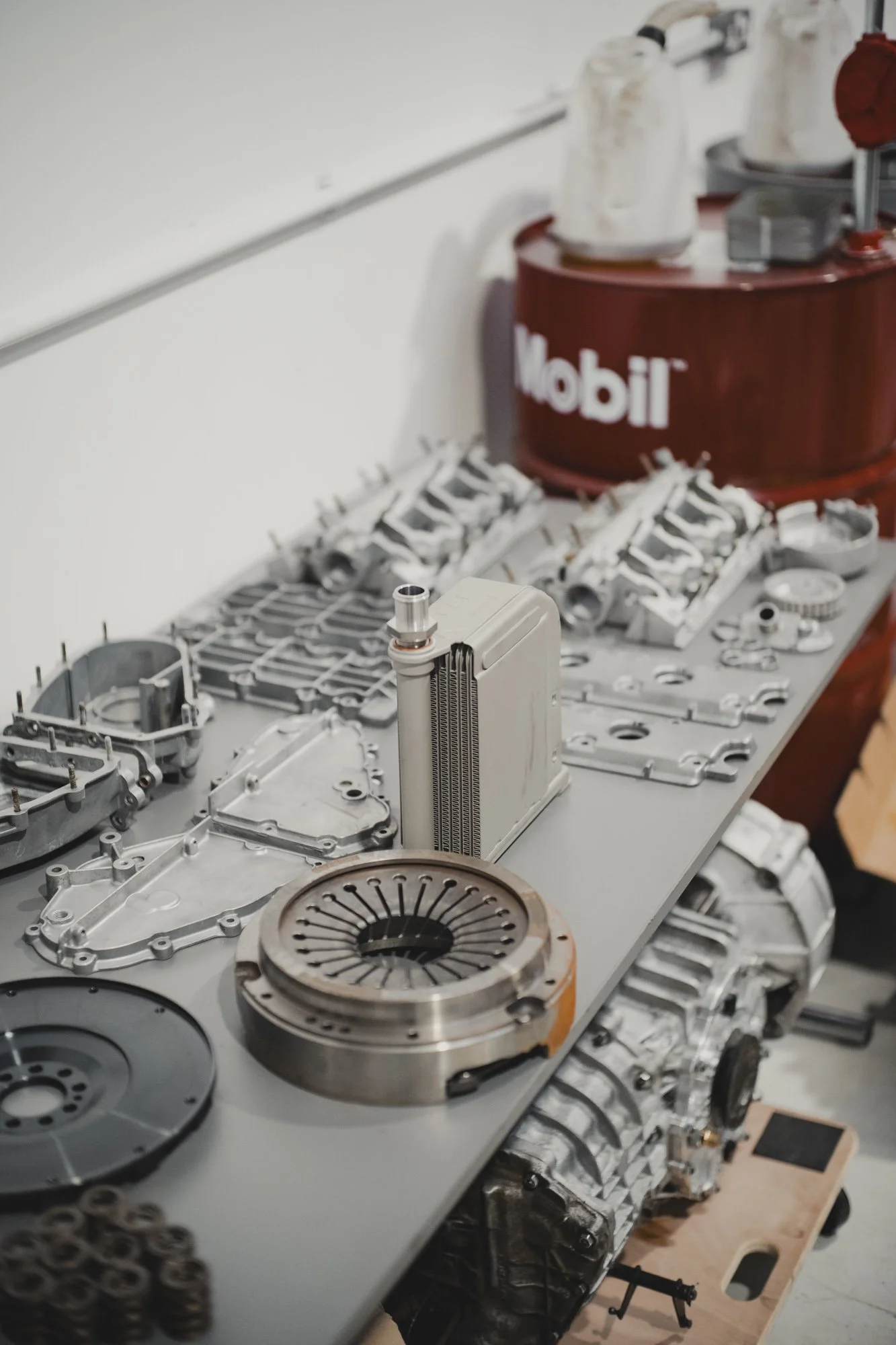

Aasco Motorsport Lightweight Flywheel Sachs Clutch kit ARP Clutch bolts
Numeric Racing Short-Throw Shifter & Extender
High-rate alternator from Classic Retrofit (needed for AC)
Achtung Kraft Air-Cooled Fan Hold-Down Strap
Adapt Motorsport Blade Fuse Panels
Custom Steel Intercooler Piping
-
New EBC brake lines
Ferodo DS2500 Pads
New discs
-
Elephant Racing Tie Rod Upgrade Kit
Elephant Racing A-Frame Spherical control arm bearings and Wishbone ball joints
Elephant Racing Trailing arm monoball cartridges
Elephant Racing - Drop Links Kit set
Elephant Racing - Bolt-On Adjustable Bump Steer Kit
Elephant Racing 935 Spring plates
Elephant Racing anti-roll bar & Drop Links Kit, RSR Style

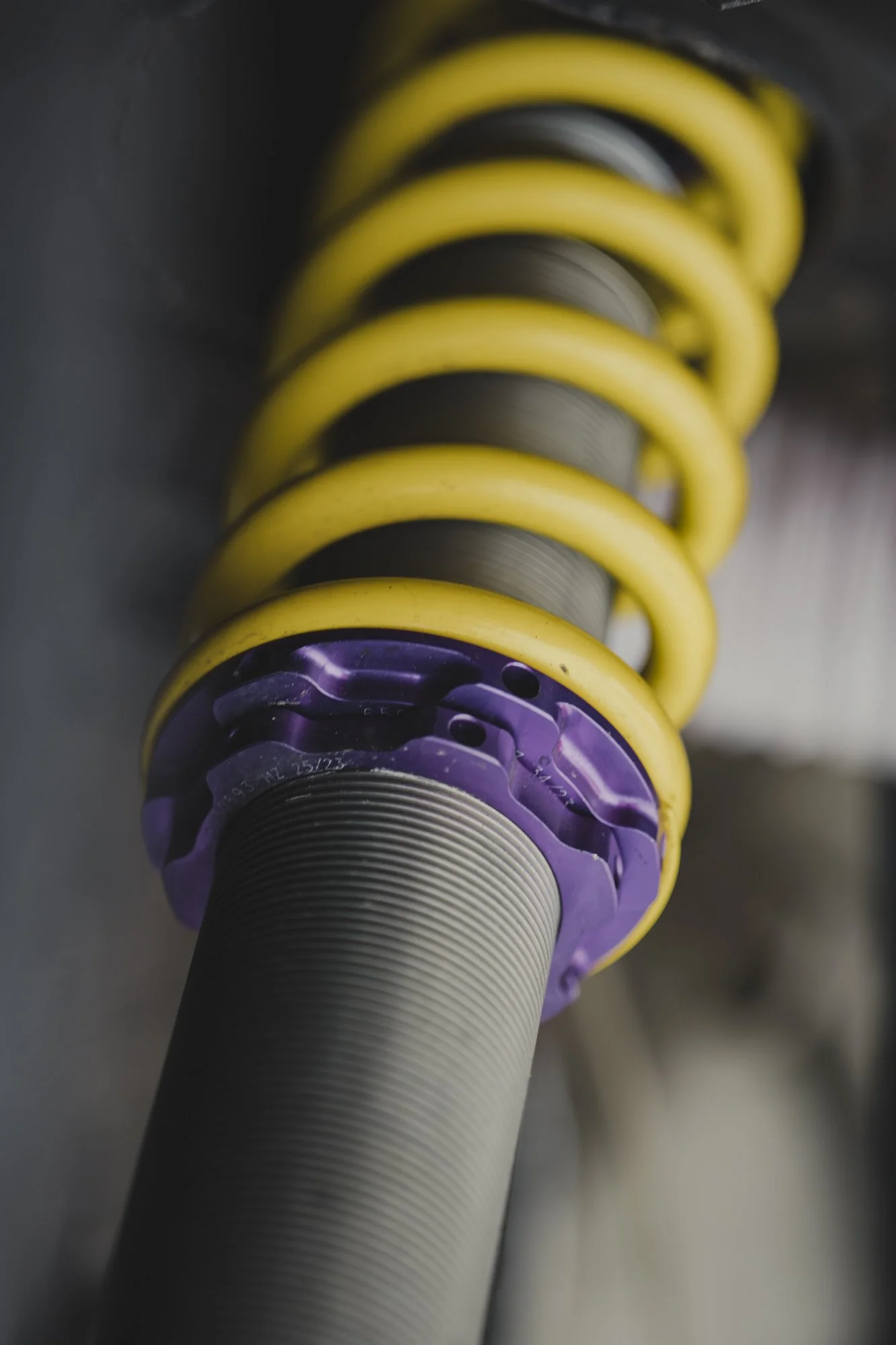

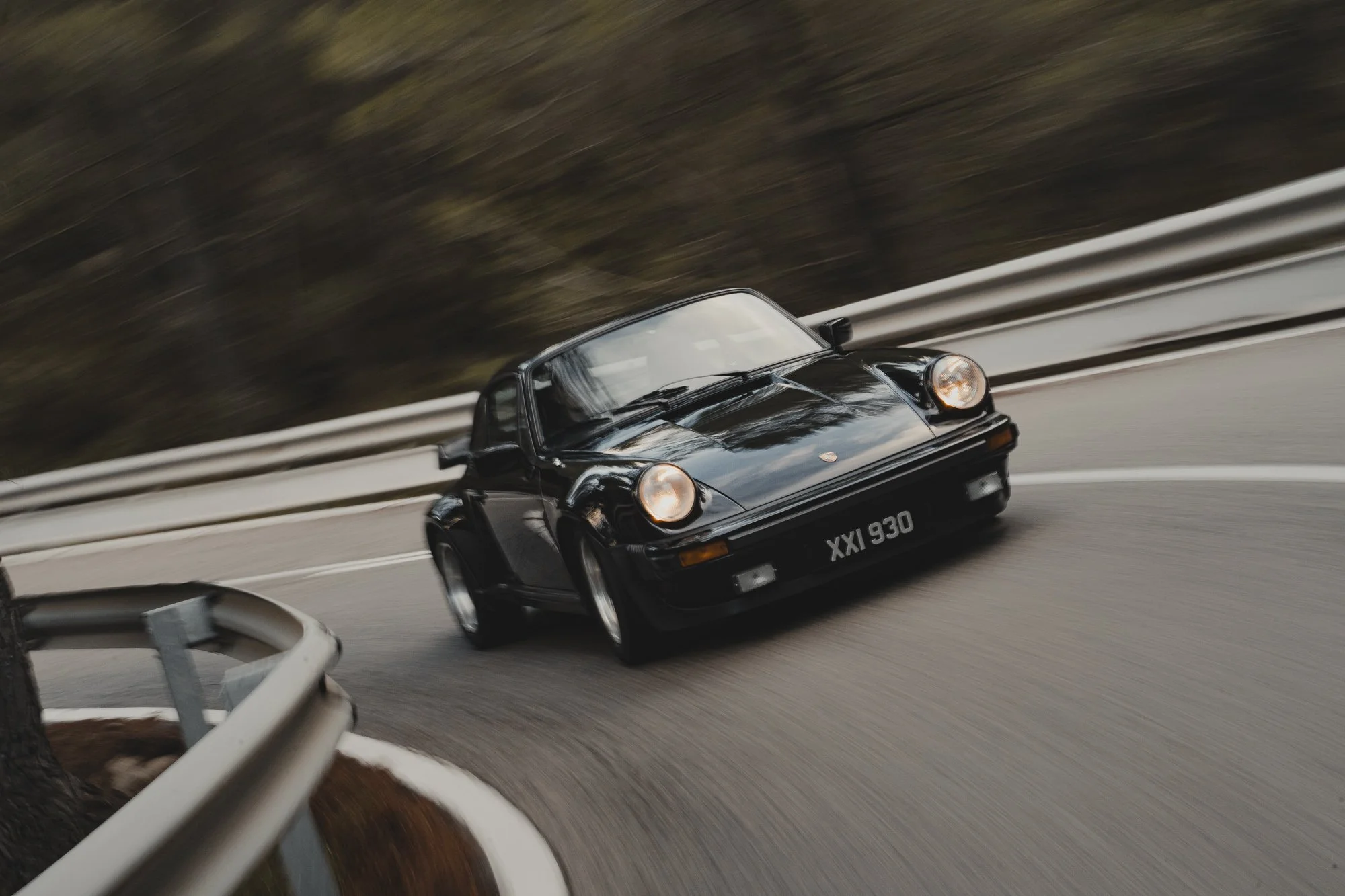

KW Clubsport 35271864 Porsche 911 - Coilovers
Rennline front strut brace
-

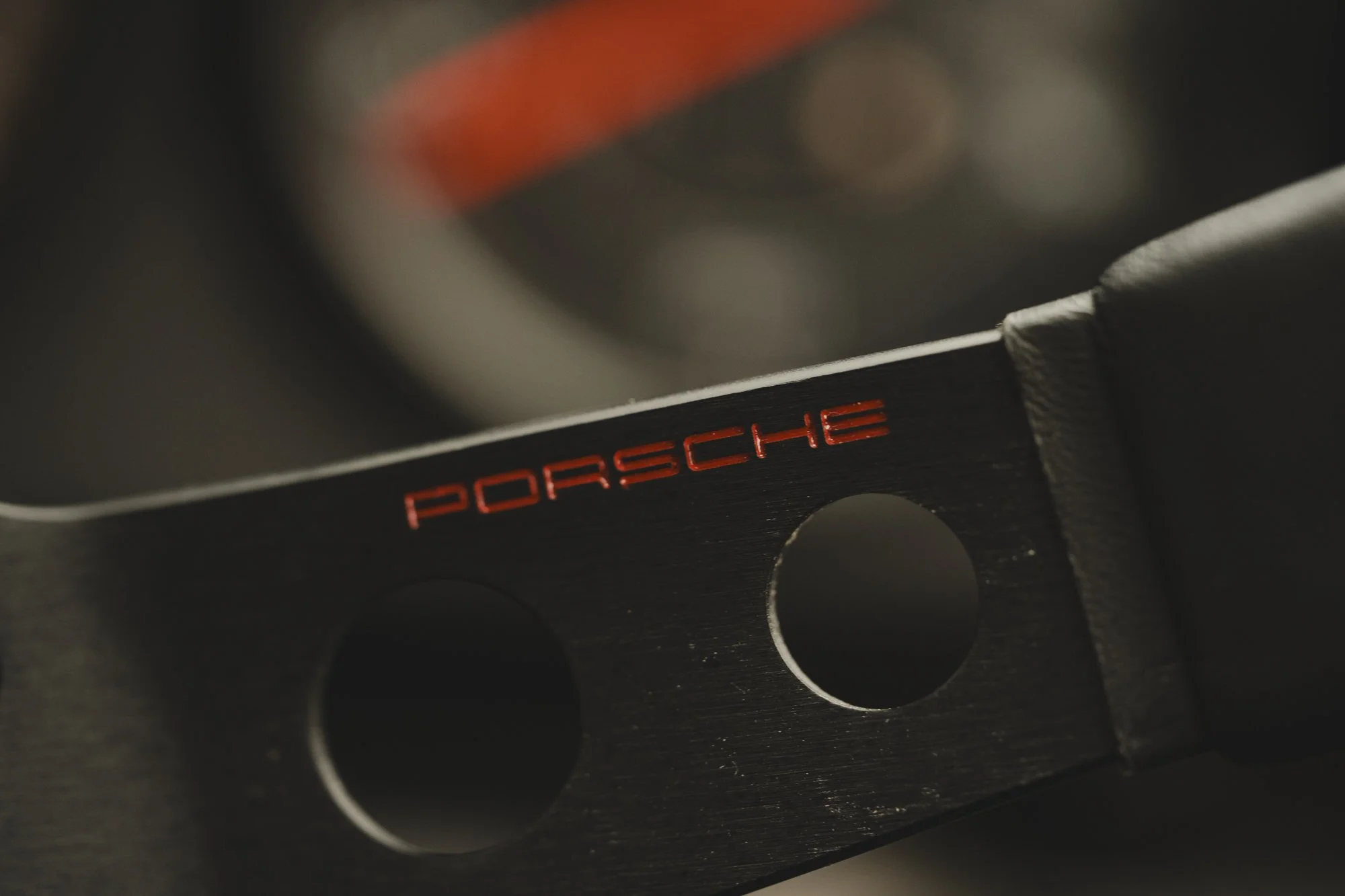

MOMO Steering wheel & boss kit
Vintage original 935 VDO boost gauge & install kit
Electronic Classic Retrofit Air Conditioning
Rear washer delete
Rennline Fire extinguisher kit
Rennline battery kill switch kit and accessories
Rennline phone mount
Rear wiper delete
CarBone RS frunk mat/ Mats and rear seat cover

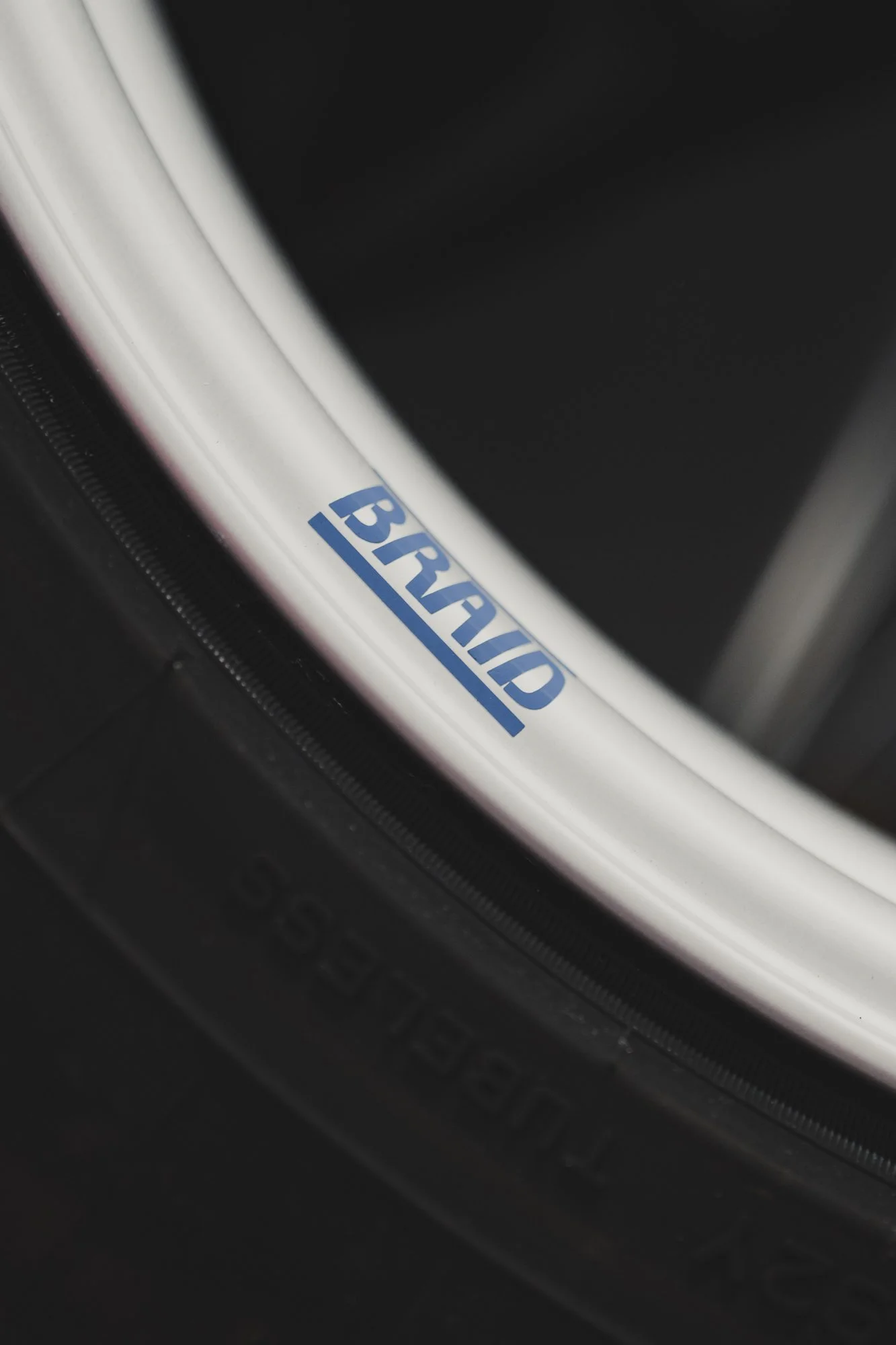

Braid Fuchs 15/9 fronts - 15/11 rears
Pirelli Cinturato tyres (225/285)
-
Zeigen Porsche
Design911
CSF Cooling
KW Automotive
Classic Retrofit
Rennline
CarBone
Braid

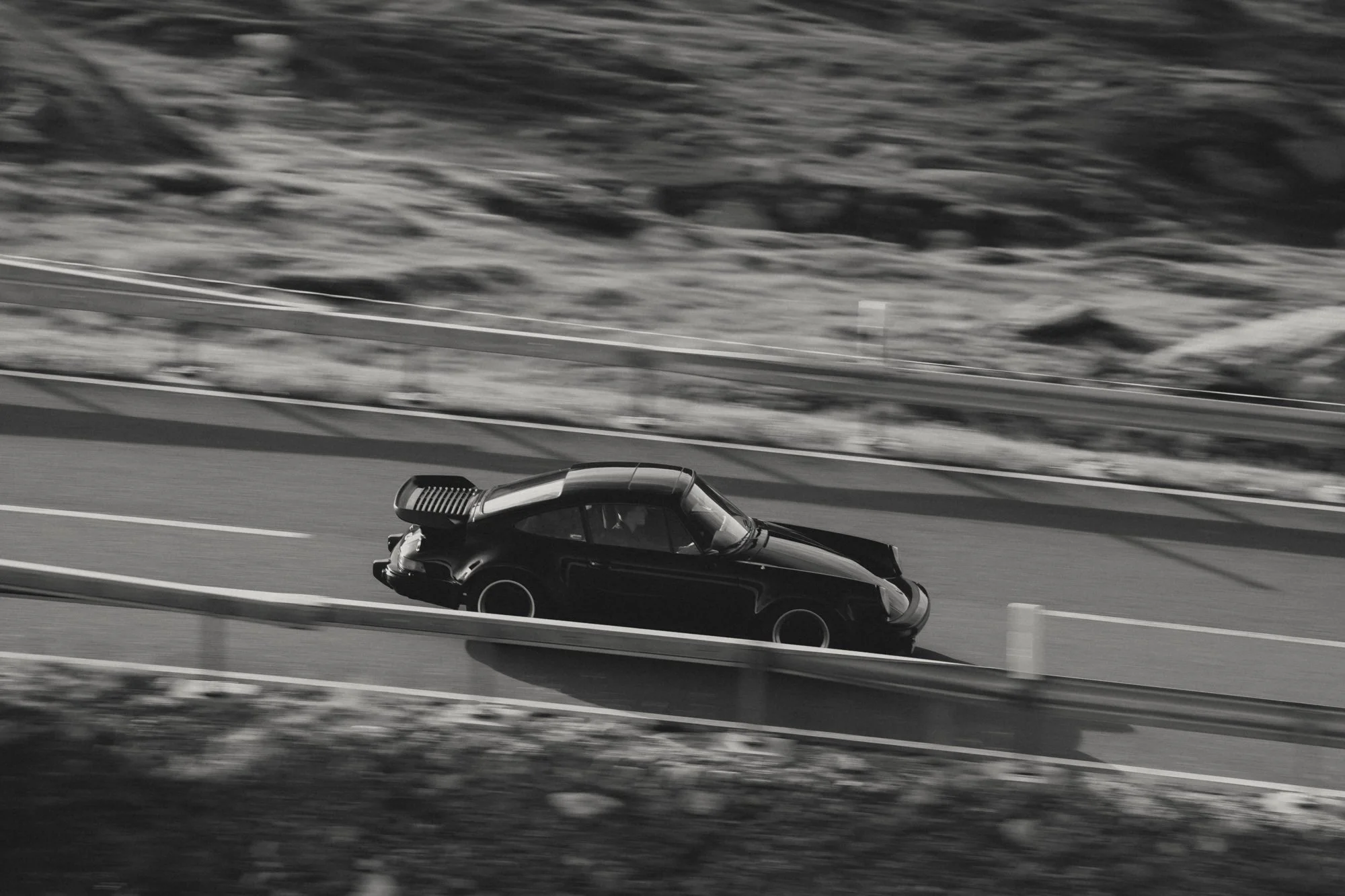

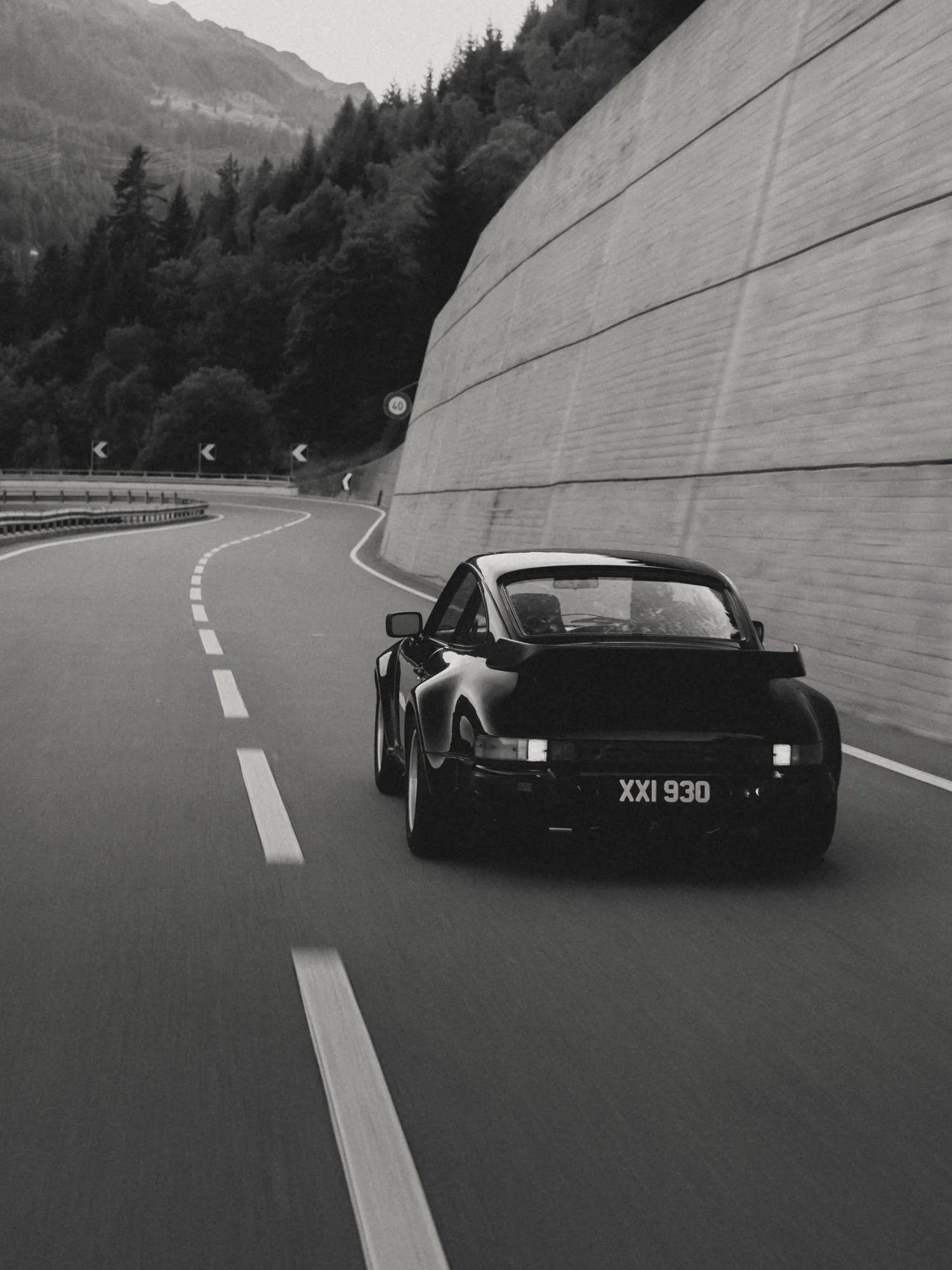

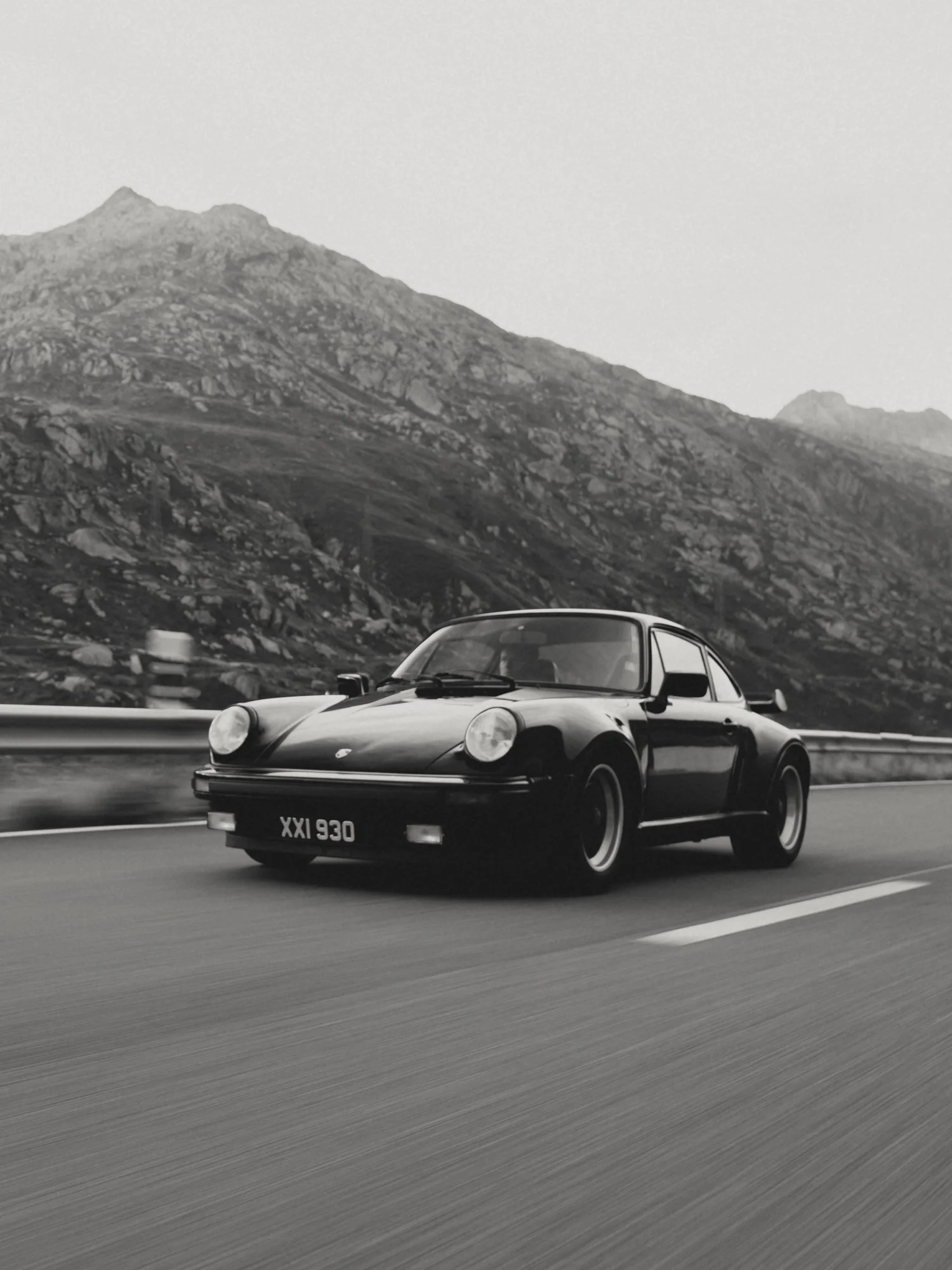

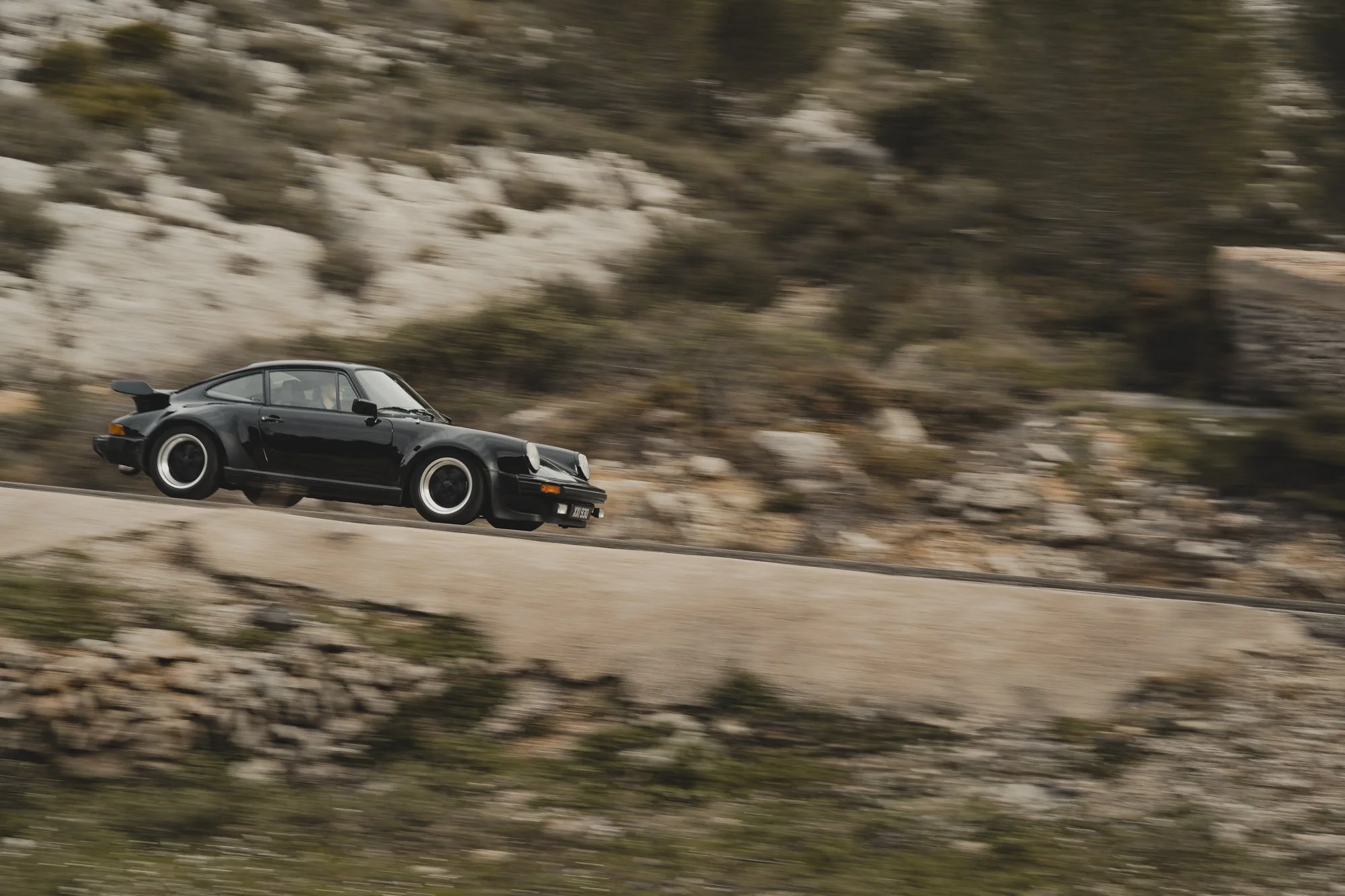

Every part has been carefully chosen, tested on real roads, and refined over thousands of miles. In the past year alone, the car has covered more than ten thousand miles across the UK and Europe. Mountain passes in Spain, empty Scottish roads at sunrise, and long journeys that remind you that these cars are meant to be driven. No garage queens around here.
The next chapter of the project marks a new era for the car. The original mechanical fuel system will soon give way to a modern electronic fuel injection setup. This upgrade will allow the engine to run with greater precision, improved reliability, and the ability to fully unlock the potential of the turbocharged flat-six.
Like the car itself, the journey is still unfolding.
